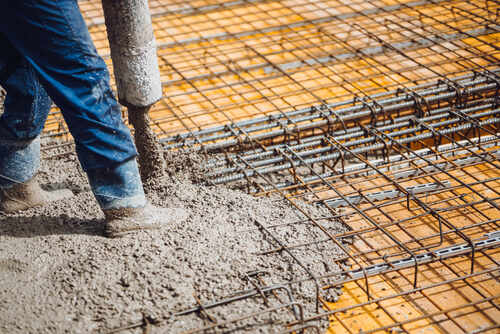

In the context of construction, a slab refers to a flat, horizontal, and typically reinforced concrete element used to form floors, ceilings, and roofs. Slabs are one of the essential components of a building structure and provide a solid, stable base for supporting other building elements such as walls, columns, and beams.
The different types used in construction projects depend on various factors, including the span of the slab, the loads it will be subjected to, and the available materials and resources. However, there are several types of slabs including:
These slabs are supported by parallel beams that transfer the load to columns. These slabs are designed to resist loads in one direction only, and the reinforcement is provided in the direction perpendicular to the beams.
This type of slab consists of a series of small reinforced concrete T-beams, spaced at regular intervals, and supported by columns or walls. The T-beams act as ribs, providing extra stiffness and reducing the amount of concrete required. The space between the beams can be filled with lightweight concrete or hollow blocks, reducing the overall weight of the structure.
A waffle slab, also known as a grid slab, is a two-way reinforced concrete slab with square or rectangular recesses, resembling a waffle or grid pattern. These recesses or voids reduce the weight of the slab while maintaining its strength and stiffness. The beams between the recesses act as stiffeners and transfer the load to the columns.

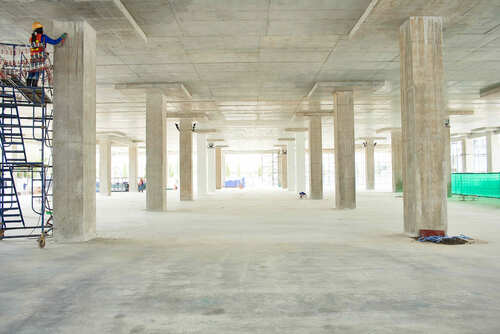

A flat plate slab is a one-way or two-way reinforced concrete slab supported directly on columns or walls. The slab is usually thin and has no beams or ribs. The reinforcement is provided in both directions to resist the loads. Flat plate slabs are simple and economical to construct.
Flat slabs are similar to flat plate slabs but have drop panels around the columns to increase the strength and stiffness of the slab. The reinforcement is provided in both directions, and the slab is supported directly on the columns or walls.
These slabs are supported by beams in both directions and are designed to resist loads in two directions. The reinforcement is provided in both directions, and the slab is usually thicker than one-way slabs.
A hollow core slab is a precast concrete slab with hollow cores running through the length of the slab. The hollow cores reduce the weight of the slab, making it easier to handle and transport. The slab is supported by beams or walls, and the reinforcement is provided in both directions.
A Hardy slab, also known as a profiled steel sheet slab, is a composite slab made of a steel sheet and a concrete topping. The steel sheet acts as a formwork during construction and as a tensile reinforcement after the concrete has hardened. The composite slab has a high strength-to-weight ratio..
Bubble deck slab is a type of two-way concrete slab that has hollow plastic balls or bubbles incorporated into the slab. These plastic balls are made from recycled materials and are placed in a matrix pattern within the slab. The bubbles reduce the amount of concrete required in the slab, making it lighter and more cost-effective. The voids created by the bubbles can also be used for services such as electrical and plumbing conduits.
A composite slab is made up of two or more materials that work together to provide the required strength and stiffness. A typical composite slab consists of a steel deck, steel reinforcement, and a concrete topping. The steel deck acts as a formwork and a tensile reinforcement, while the concrete topping provides compression strength.
Precast slabs are precast concrete elements that are manufactured in a factory and transported to the construction site. These slabs can be one-way or two-way and can have a variety of shapes and sizes. Precast slabs are usually supported by beams or walls and are connected to each other by jointing systems.
Understanding the different types of slabs used in construction is crucial for anyone involved in the building design and construction industry.
Slabs are an essential component in the construction of buildings, and they perform various functions, including:
This is an in-depth look at the various types of slabs used in construction. It explains what a slab is and how important it is in providing a stable foundation for other building elements. Choosing the right slab type is essential for any construction project, and there are a variety of factors to consider, including span, load, budget, and construction method. This guide helps you to get a comprehensive understanding of slabs and be equipped with the knowledge to select the ideal slab type for your next project.
