Concealed piping

By fixing the piping and wiring of the house inside the walls, the look and finish of the house is maintained. Let's see the correct way of concealing water piping inside the walls.

logo

You can downoad checklist also in PDF format

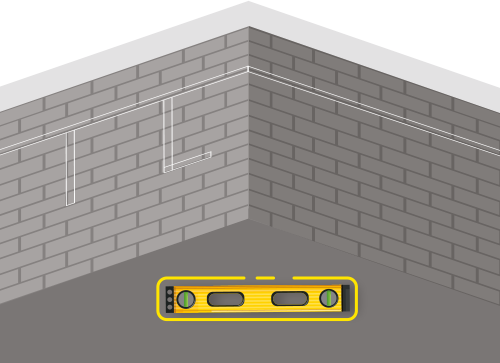

Step No.1

First of all, mark the points for taps, showers, wash

basin sand the way for the pipes connecting to them

onwalls. You can use spirit level for this.

The drainage flow and potable water flow should not

overlap each other.

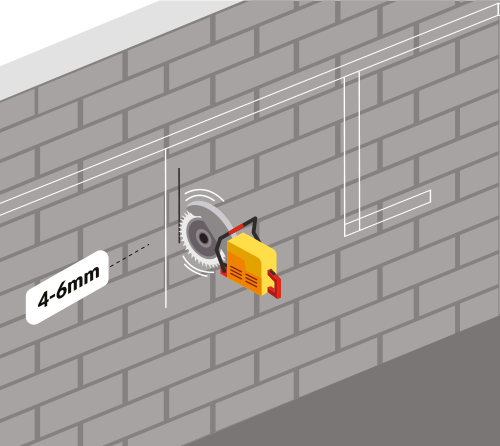

Step No.2

After that, cut the marked area with the disc blade.

Take note that, the depth of the cutting should be

4-6 mm more than the size of the pipe sand

one important thing... concrete beam or column

should never be cut.

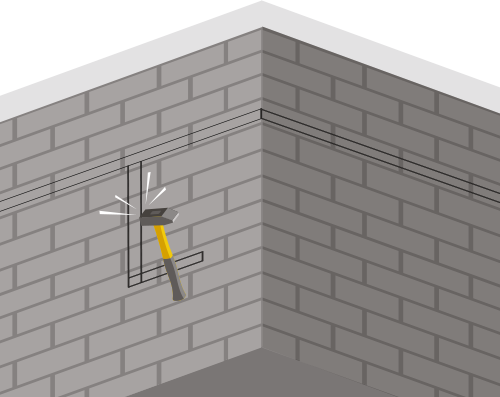

Step No.3

For making grooves, cut the portion between

the two lines with the help of a shovel;

if the wall is load bearing, do not cut it at one time.

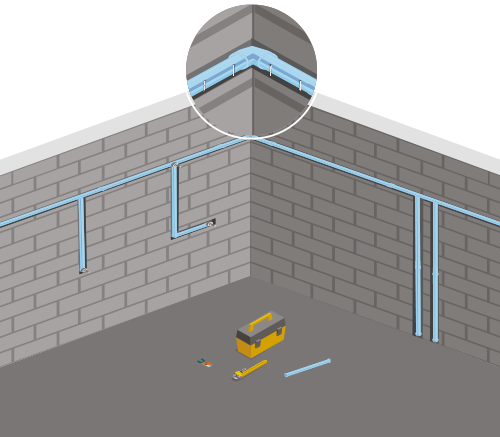

Step No.4

Fit the pipes with the help of the nails in the grooves.

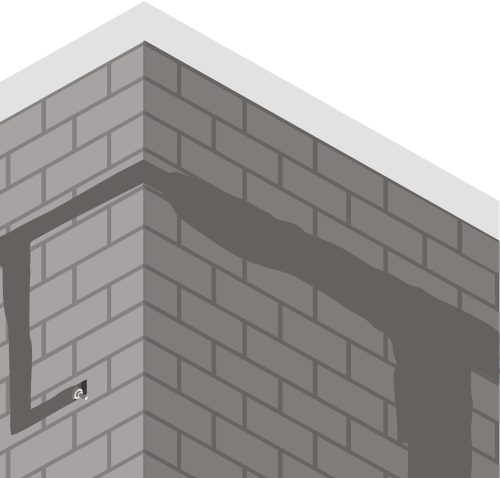

Step No.5

Fill the gap between the pipes and the wall by

applying a mortar of cement and soil.

To avoid cracks in the future, use a steelmesh, fix

the mesh on the groove and fix and fill it with the

mortar and nail.
